Electronic sealing device EPU-01 (navigation seal) is designed to detect unauthorized access to containers along their entire route during transit international road transportation, as well as to indicate the facts of unauthorized access to containers during storage and transportation with automatic data transmission to the information system of the sealing operator using digital channels of information transmission via mobile communication networks.

Specifications

Network type	2G, 3G, 4G (LTE)
Positioning systems	GPS/GLONASS/Beidou
Internal memory	128 mb
SD card holder	1 pc.
SIM card holder	1 pc.
NFC	Yes
Bluetooth	Yes
Battery type	Li-ion 8800 mAh
Cable diameter	5-6 mm
Operating temperature range	-40 to +70 °C
Resistance certificates	IP67
Size (WxHxD)	100x163x54 mm
Weight without charger	0,8 kg
Weight with charger	1 kg

The autonomous operation of the EPU-01 device is ensured by a built-in rechargeable battery and is as follows:

– No less than 30 days when transmitting information to the sealing system operator at least once every 2 hours;

– No less than 45 days when transmitting information at least once every 4 hours.

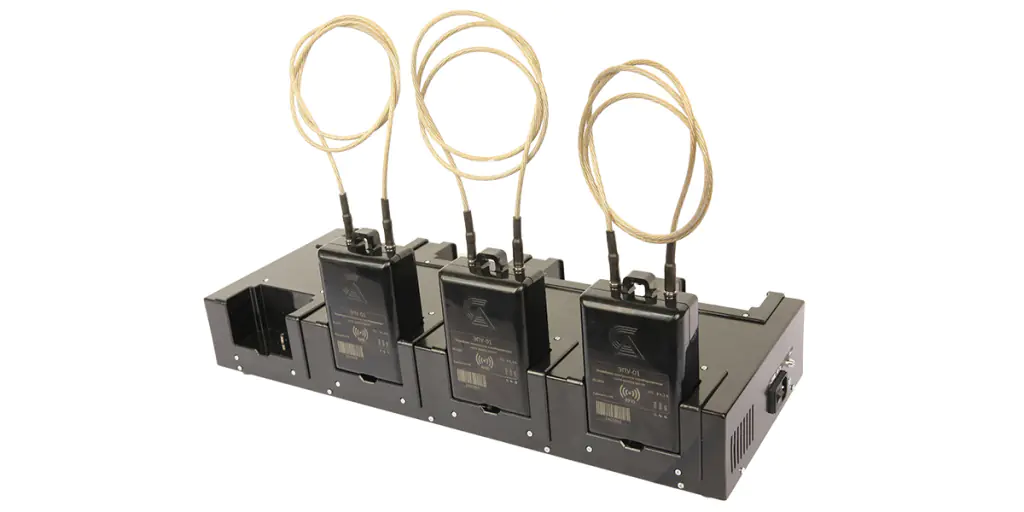

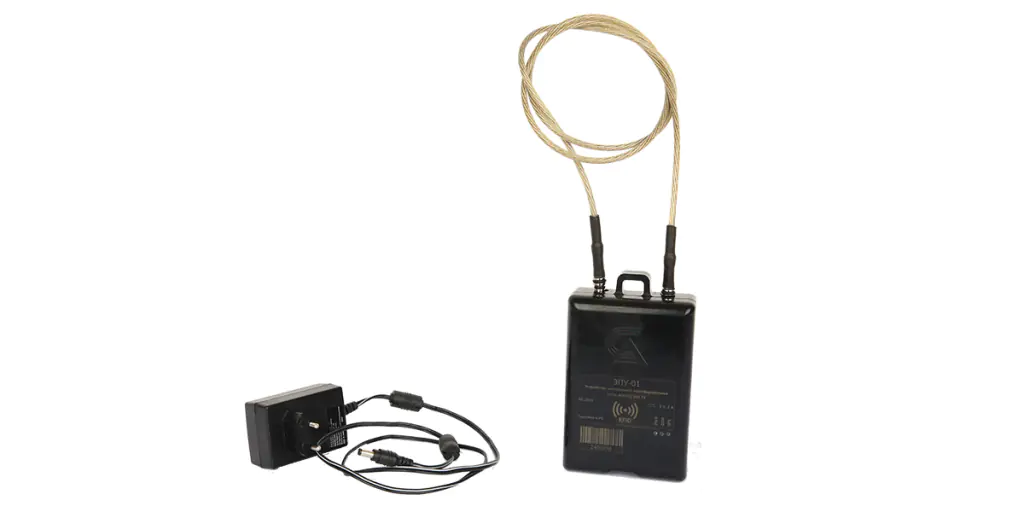

The EPU-01 battery is charged from a charger with a constant voltage of 9 V ± 10% or from a group charging device ZU8, manufactured by the company and supplied separately.

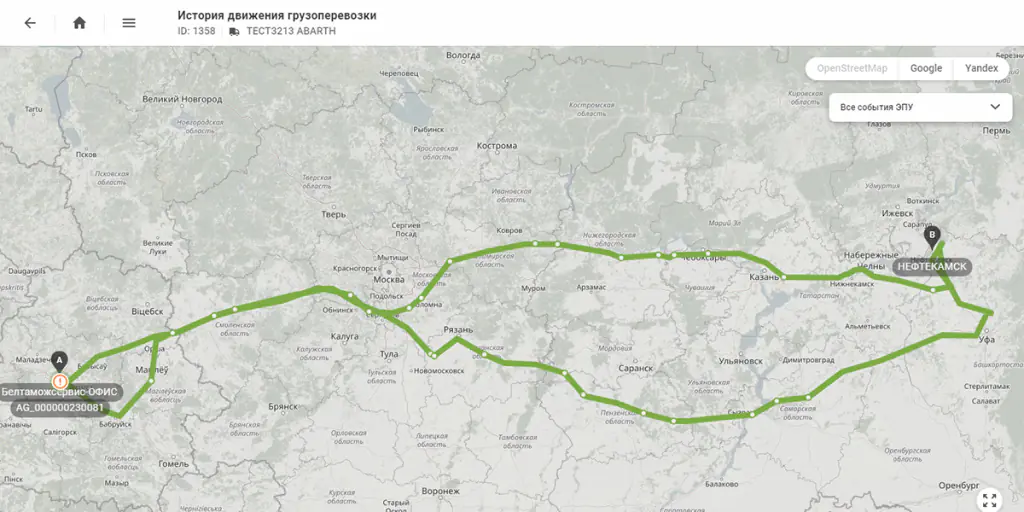

• Determining the device’s location.
• Checking the integrity of the device’s cable.
• Detection of unauthorized tampering with the device’s enclosure.
• Transmission and reception of information over mobile communication networks and Bluetooth standard wireless networks.
• Storing information in internal non-volatile memory and sending an SMS message when it is not possible to transmit information over mobile communication networks.
• Automatic locking of the locking mechanism after the cable is set and unlocking of the locking mechanism after sending a special command to the device via mobile communication networks, through the Bluetooth interface, or by applying prescribed RFID cards in the memory to the EPU-01 housing (contactless card for radio frequency identification).
• Authentication of specialized mobile devices operating via the Bluetooth interface, as well as RFID cards and commands coming from the sealing operator’s information system.

Open Joint Stock Company “AGAT – Control Systems” – Managing Company of “Geoinformation Control Systems” Holding is the sole developer and manufacturer in the Republic of Belarus of the electronic sealing device EPU-01 and the group charging device ZU8."

For technical consultation, please call the following number: +375 (17) 347-31-64.
