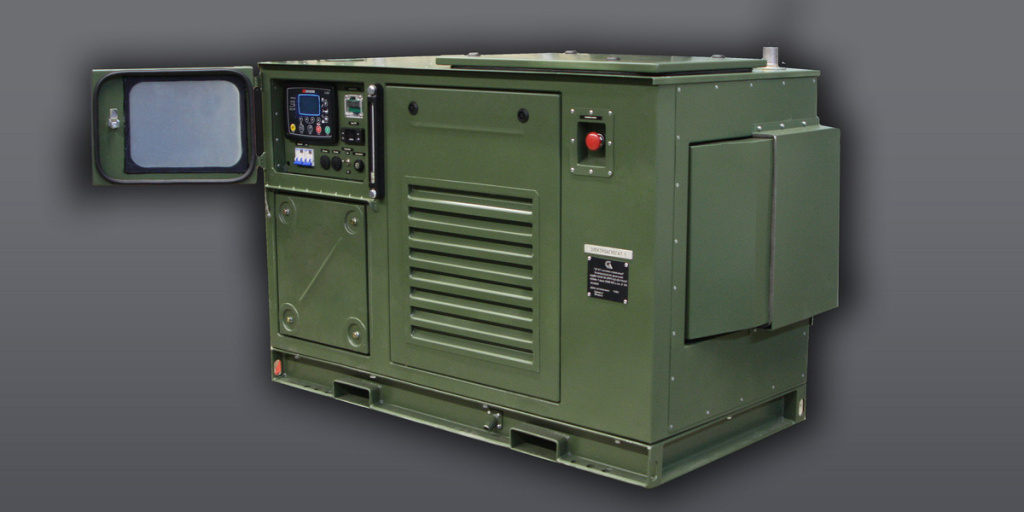

DIESEL POWER PLANT (DPP)

DIESEL POWER PLANT (DPP)
Purpose / Description

PURPOSE / DESCRIPTION
Diesel power plants are designed to be used as autonomous sources of electrical supply for consumers of alternating current with a frequency of 50 Hz and a voltage of 230/400 V.
  TECHNICAL SPECIFICATIONS


Technical specifications AD8YU-O230-50-2RRP-G2-O0-UHL3
[АД8Ю-О230-50-2РРП-G2-О0-УХЛ3] 		AD10YU-T400-50-2RRP-G2-O0-UHL3
[АД10Ю-Т400-50-2РРП-G2-О0-УХЛ3] 		AD30YU-T400-50-2RRP-G2-O0-UHL3
[АД30Ю-Т400-50-2РРП-G2-О0-УХЛ3]
Output voltage, V 230 400 400
Output voltage frequency, Hz 50  50 50
Output power, kW 8,5 10 30
Number of phases 1 3 3
Overall dimensions of the DPP with noise protection enclosure, mm 1500х750х950 1500х750х950 1800х920х1150
DPP weight, kg, no more than 550 550 920
Engine speed, RPM 1500 1500 1500
Cooling system Liquid Liquid Liquid
Maximum noise level at a distance of 7 meters, dBA, not more than 74 74 78

Features & Benefits
FEATURES AND ADVANTAGES
  Power plants:
are manufactured in a soundproof enclosure to protect against adverse weather conditions and to reduce noise levels;
 maintain operability under conditions of low and high temperatures ranging from minus 40 °C to plus 45 °C and high humidity up to 98% at a temperature of plus 25 °C;
withstand increased shock and vibration loads;
allow a power overload of 10% above the rated capacity for 1 hour for every 12 hours of operation.
  The fuel tank capacity ensures continuous operation of the power plants for 12 hours.
